| Product Description |

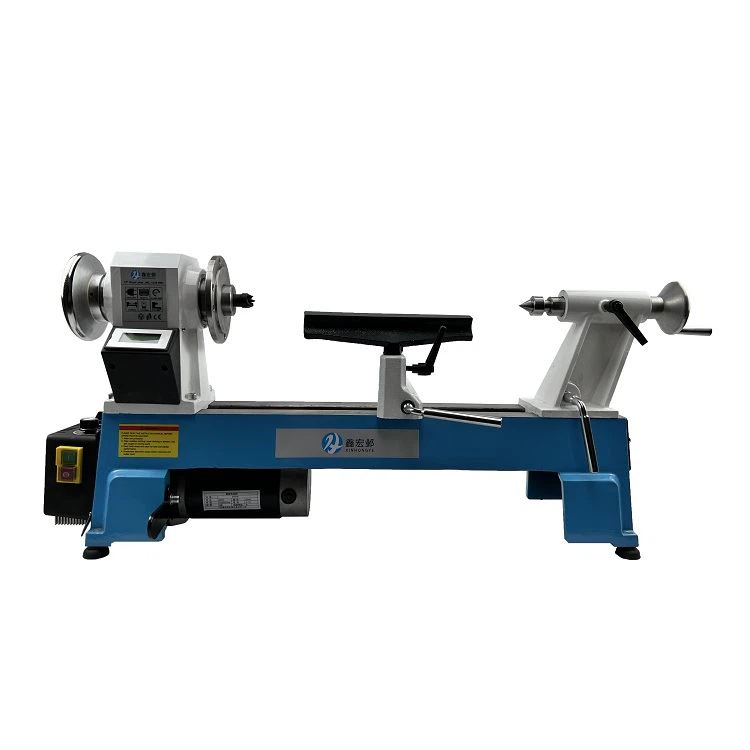

In order to increase the safety of Multifunctional Digital Display Wood Lathe, we specially designed a safety lock pin. When the middle red plug is pulled out, the switch can only be turned off. Rubber pads at four corners are used to ensure the stability of the machine during operation. The digital display screen is used to display the working condition of the machine, so as to facilitate the user to conduct accurate speed regulation and other operations. The metal handwheel can be adjusted manually to achieve fast locking. The tool holder can be adjusted up, down, left and right freely to achieve various carving.
Features
●The high-quality motor enables the product to operate stably and continuously. And the machine can adjust speed steplessly.
●Users can monitor the operation of the machine through the digital display screen to achieve better processing results.
●The machine can rotate 360 degrees to increase the processing range and achieve better processing effect.
●The solid fuselage and reasonable component structure make Multifunctional Digital Display Wood Lathe not emit various noises.
| Specification |
Brand | XINHONGYE |
Model | MCTY-50 |
Motor Power | 750W |
Voltage / Frequency | 220V / 50HZ |
Continuously Variable | 650~3500 rpm |
Max Machining Length | 450mm |
Max Machining Diameter | 300mm |
Main Shaft Through Hole Diameter | 38mm |
Face Plate Diameter | 125mm |
Knife Rest | 240mm |
Net Weight / Gross Weight | 43KGS / 45KGS |
Packing Dimension | 830×460×315mm |
| Product Structure |
Wood Lathe Function Parameter Analysis
Multifunctional micro wood lathe, the combination of technology and quality.
| Features |
●Four corner rubber guide wheel,rubber feet to ensure the stability of the bed when working.
●Digital display speed. Precise speed adjustment,easy operation.
●Metal handwheel,easy manual adjustment to achieve fast locking.
●Knife holder can be adjustment freely up & down,left & right,easy to use.
| Our Advantage |
Six Details Analysis
| Application Scenarios |
| Certificates |
| Our Service |
●Our engineer could support you technology to your country if necessary.
●We have a professional engineer after-sales team to guarantee your after-sales worry-free and assured purchase.
●Our engineer could service you 24 hours online by Skype, yahoo, msn, QQ, or by cellphone.
●English manual and CD video for machine using and maintaining will send to you with the machine.
| Packing & Shipping |
We ship the goods in strong packing to ensure good condition on arrival.
We can also design the mark and sticker according to your demands.
| FAQ |
1.Q: How long is the product warranty?
A: Motor warranty for one year.
2.Q: Visiting factory is allowed or not?
A: Yes, we welcome customers visiting our factory. Our factory is located in Gaoyou City,Jiangsu Province,China.
3.Q: Have your products been exported?
A: Yes, our products have been exported to USA, Canada, Australia, Russia,Chile,Panama,Nicaragua, UAE, Saudi Arabia,Egypt,Sri Lanka, Nigeria, Iran,Vietnam,
4.Q: Can the products be manufacturer by customer's requirement?
A: Yes, the specifications stated above are the standard ones, we can design and manufacture as requirement.
